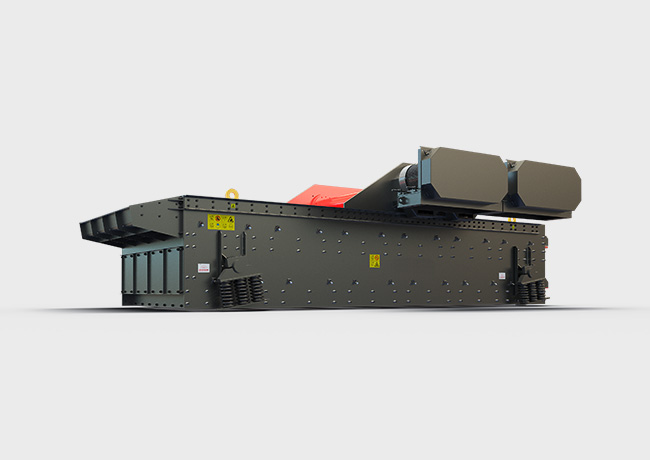

LS Series Linear Screen

The LS series linear screen has a motion trajectory that is either linear or nearly elliptical. This combines the high screening efficiency of a linear vibration trajectory with the large handling capacity of a circular vibration trajectory. It is installed in a nearly horizontal manner, making it the best choice when the installation space height is limited, the difference between the upper and lower limits of the screening particle size is small, or the screened material has a high specific gravity.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

The screen body and screen frame are connected using twist-shear bolts, ensuring a sturdy and reliable structure.

The installation angle is adjustable from -3° to 10°, occupying minimal space.

With a vibration intensity of up to 5.0G, it ensures high screening efficiency.

The linear or near-linear elliptical motion trajectory ensures effective screening performance.

The bearings are assembled using a "corrosion-resistant assembly" process and lubricated with thin oil in an oil bath, which extends their lifespan.

TECHNICAL PARAMETERS

Model	Screen mesh size	Motor power/kw	Rotating speed	Amplitude	Vibration intensity	Installation angle	Separation particle size	Maximum feeding size
2LS1550	1500x5000	2x11	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
3LS1550	1500x5000	2x11	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
4LS1550	1500x5000	2x15	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
2LS1860	1800x6000	2x11	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
3LS1860	1800x6000	2x15	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
4LS1860	1800x6000	2x22	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
2LS2160	2100x6000	2x11	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
3LS2160	2100x6000	2x15	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
4LS2160	2100x6000	2x22	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
2LS2460	2400x6000	2x15	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
3LS2460	2400x6000	2x22	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
4LS2460	2400x6000	2x30	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
2LS2770	2700x7000	-	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
3LS2770	2700x7000	2x30	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
4LS2770	2700x7000	-	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
2LS3060	3000x6000	-	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
3LS3060	3000x6000	2x30	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
4LS3060	3000x6000	-	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
2LS3070	3000x7000	-	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
3LS3070	3000x7000	2x30	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm
4LS3070	3000x7000	-	850r/min	5-16mm	maximum 4.5G	-3°-10°	2-100mm	300mm

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
