HX(D)series Heavy Vibating Screen

HX(D) series vibrating screen is a new type of circular vibrating screen product launched for heavy-duty working conditions. The technology is mature and the accessories are versatile. It has high vibration intensity, high structural strength, simple maintenance and long service life. Suitable for various screening operations such as heavy, medium and fine screening. This kind of screening machine is an ideal equipment for processing the products after primary crushing and secondary crushing. It can also be used for inspection screening in the process and final product screening.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

The screen surface inclination angle selection range is 15°-23°, which can better adapt to the specific working conditions on site.

The exciter consists of an eccentric shaft and an eccentric block structure, providing stable transmission and sufficient excitation force.

A vibratory device with oil lubrication requires to change every six months, ensuring effortless and worry-free maintenance in daily operations.

Key components have been designed with wear-resistant protective layers to extend the equipment's service life.

Belt pulley transmission allows for quick adjustment of equipment speed based on on-site conditions.

Using specialized bearings for vibration equipment ensures reliable performance throughout your screening process.

TECHNICAL PARAMETERS

HX series vibrating screen

HX(D) Heavy Vibrating Screen

Model	Sieve Layer	Sieve obliquity (°)	Vibrating Frequency (r/min)	Max.Feeding Size (mm)	Processing Capacity (t/h)	Power (kw)	Mesh Size (mm)	Double Amplitude (mm)	Dimensions (LxWxH) (mm)
2HX1545	2	18	780-900	200	45-500	15	1-130	7-12	5380×2350×1550
3HX1545	3	18	780-900	200	55-500	18.5	1-130	7-12	5575×2350×2130
4HX1545	4	18-20	780-900	200	65-500	22	1-130	7-12	5730×2400×2620
2HX1855	2	18	780-900	200	55-600	18.5	1-130	7-12	5680×2650×1570
3HX1855	3	18	780-900	200	65-600	22	1-130	7-12	5900×2655×2250
4HX1855	4	18-23	780-900	200	75-600	22	1-130	7-12	6030×2660×2640
2HX2165	2	18	780-900	200	65-700	30	1-130	7-12	7160×2960×1825
3HX2165	3	18	780-900	200	75-700	30	1-130	7-12	7400×2980×2505
4HX2165	4	18-23	780-900	200	85-700	37	1-130	7-12	7450×2985×2635
2HX2465	2	18	780-900	200	80-800	37	1-130	7-12	7160×3270×1825
3HX2465	3	18	780-900	200	90-800	37	1-130	7-12	7400×3280×2505
4HX2465	4	18-23	780-900	200	100-800	37	1-130	7-12	7450×3285×2635
2HX2765	2	18	780-900	200	100-900	37	1-130	7-12	7180×3585×1945
3HX2765	3	18	780-900	200	110-900	45	1-130	7-12	7390×3600×2585
4HX2765	4	18-23	780-900	200	120-900	45	1-130	7-12	7480×3600×2855
2HX3065	2	18	780-900	200	110-1200	37	1-130	7-12	7180×3885×1945
3HX3065	3	18	780-900	200	120-1200	45	1-130	7-12	7390×3900×2585
4HX3065	4	18-23	780-900	200	130-1200	45	1-130	7-12	7480×3900×2855
2HX3074	2	18	780-900	200	120-1300	37	1-130	7-12	3190 3 10×1985
3HX3074	3	18	780-900	200	130-1300	45	1-130	7-12	8415×3910×2675
2HX3084	2	18	780-900	200	130-1300	37	1-130	7-12	9200×3900×1985

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve obliquity (°)	Processing Capacity (t/h)
2HX1545	2	18	45-500
3HX1545	3	18	55-500
4HX1545	4	18-20	65-500
2HX1855	2	18	55-600
3HX1855	3	18	65-600
4HX1855	4	18-23	75-600
2HX2165	2	18	65-700
3HX2165	3	18	75-700
4HX2165	4	18-23	85-700
2HX2465	2	18	80-800
3HX2465	3	18	90-800
4HX2465	4	18-23	100-800
2HX2765	2	18	100-900
3HX2765	3	18	110-900
4HX2765	4	18-23	120-900
2HX3065	2	18	110-1200
3HX3065	3	18	120-1200
4HX3065	4	18-23	130-1200
2HX3074	2	18	120-1300
3HX3074	3	18	130-1300
2HX3084	2	18	130-1300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve obliquity (°)	Vibrating Frequency (r/min)	Max.Feeding Size (mm)	Processing Capacity (t/h)	Power (kw)	Mesh Size (mm)	Double Amplitude (mm)	Dimensions (LxWxH) (mm)
2HX3075D	2	15-20	600-1100	300	130-1300	22×2	1-140	5-13	8695×4080×2145
3HX3075D	3	15-20	600-1100	300	140-1300	37×2	1-140	5-13	8940×4095×2885
2HX3085D	2	15-20	600-1100	300	150-1300	37×2	1-140	5-13	9892×3909×2140
3HX3085D	3	15-20	600-1100	300	160-1300	45×2	1-140	5-13	10132×4100×2880

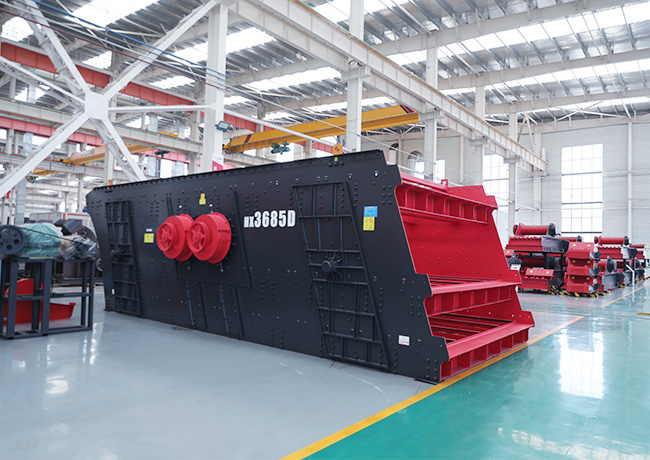

2HX3685D	2	15-20	600-1100	300	200-1500	37×2	1-140	5-13	9500×5420×2200
3HX3685D	3	15-20	600-1100	300	220-1500	45×2	1-140	5-13	9780×5505×3050

Model	Sieve Layer	Sieve obliquity (°)	Processing Capacity (t/h)
2HX3075D	2	15-20	130-1300
3HX3075D	3	15-20	140-1300
2HX3085D	2	15-20	150-1300
3HX3085D	3	15-20	160-1300
2HX3685D	2	15-20	200-1500
3HX3685D	3	15-20	220-1500
