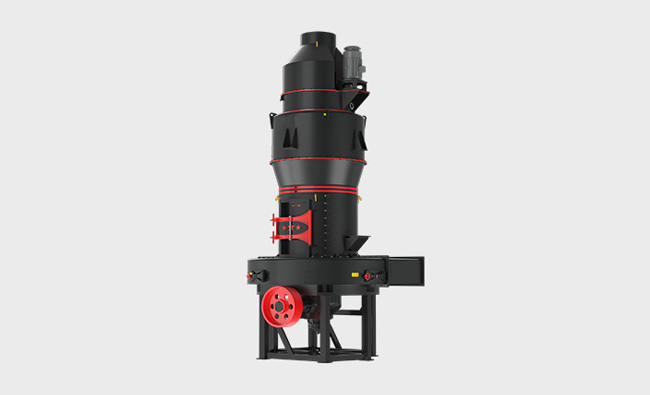

HGM German Version Raymond Mill

The HGM series German-style Raymond mill, developed by the FTM Company’s research institute, is based on over 40 years of experience in grinding equipment R&D. Considering users' practical experiences and the needs of the grinding industry, it incorporates advanced and mature grinding technologies and concepts from both domestic and international sources. This new product represents a high level of technological advancement.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

1. Split Modular Structure: Easy maintenance and repairs.

2. Coupler and Reducer Transmission: Compact structure；

3. Resistance-Free Volute with Curved Air Duct: Reduces wind resistance at the air inlet of the entire closed-loop system;

4. Split Grinding Roller: Special wear-resistant scraper blade structure reduces the cost of replacing worn parts.

WHAT PEOPLE SAY?

This grinding equipment is incredibly efficient, capable of turning large chunks of raw material into fine powder in no time, which greatly boosts our production speed.

Nathan

Germany

07/11/2022

The powder produced is exceptionally fine and uniform, with consistent quality that meets our standards and requirements perfectly. This fine and even particle size not only ensures optimal performance in our applications but also contributes to the overall reliability and effectiveness of our end products. The stable quality of the powder has significantly improved our production processes and meets our precise specifications.

Patrick

The Philippines

20/04/2023

The equipment is extremely easy to operate, with a control panel that is designed to be very intuitive. It only takes a few minutes to get the hang of it, making it especially suitable for beginners. The straightforward design and user-friendly interface ensure that even those who are new to operating such equipment can quickly become proficient. This simplicity helps streamline our operations and minimizes the learning curve for new operators.

Ryan

Indonesia

16/11/2023

The equipment operates with very low noise, which doesn't disturb the working environment at all. This is incredibly important as it helps maintain a comfortable and productive workspace. It is important point of my demand.

Quirin

USA

28/04/2024

The maintenance of this equipment is very convenient; disassembly and cleaning are simple, which helps us save a lot of time and maintenance costs.

Osiris

Canada

26/11/2023

TECHNICAL PARAMETERS

Model	Feeding size (mm)	Finished product size (mm)	Capacity (t/h)	Grinding ring diameter (mm)	Number of grinding roller	Power of main machine (kW)	Blower power (kW)	Analyzer power (kW)	Transmission type
HGM88	<25	0.25-0.015	0.4-5	908	3	22	22	5.5	V-belt transmission
HGM95	<25	0.25-0.015	0.6-7	1006	3	37	37	7.5	V-belt transmission
HGM120	<25	0.25-0.015	1.2-15	1280	3	55	75	15	Reducer transmission
HGM130	<25	0.25-0.038	1.6-21	1400	4	75	90	18.5
HGM138	<25	0.25-0.038	2-25	1510	4	90	110	22
HGM160	<30	0.25-0.038	2.7-28	1770	5	132	160	22/30

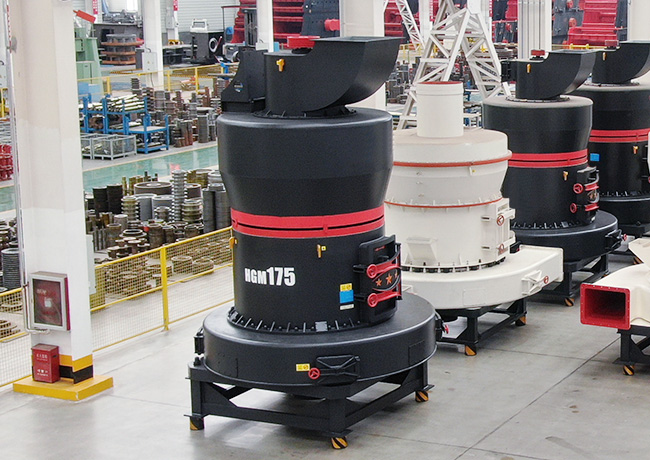

HGM175	<35	0.25-0.038	3-35	1900	5	185	200	30
HGM190	<40	0.25-0.038	5-40	2040	4	250/280	250/280	45/55

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Capacity (t/h)	Power of main machine (kW)
HGM88	0.4-5	22
HGM95	0.6-7	37
HGM120	1.2-15	55
HGM130	1.6-21	75
HGM138	2-25	90
HGM160	2.7-28	132
HGM175	3-35	185
HGM190	5-40	250/280
