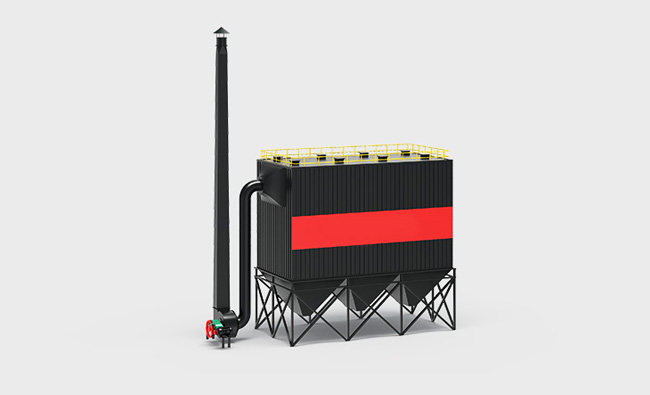

DMC Series Single Pulse Dust Collector

The DMC series single-machine pulse dust collector uses pulse jet cleaning technology, offering high cleaning efficiency, appropriate air handling capacity, long filter bag life, low maintenance, and safe and reliable operation. It is suitable for dust collection and material recovery in various industrial and mining enterprises, specifically for non-fibrous industrial dust.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

Row spray cleaning

Utilizes row spray cleaning technology, ensuring excellent cleaning efficiency.

Long filter bag life

The filter bags have a long lifespan, reducing replacement frequency and costs.

Safe and reliable operation

The equipment operates safely and reliably, reducing faults and downtime.

TECHNICAL PARAMETERS

Model	Filtering area （m²）	Air volume （m³/h）	Fan model	Fan motor	Number of filter bag	model of matched german raymond mill	Note
DMC24	18	864~2160	4-72-3.2A	Y90L-2-1.5kw	24
DMC36	27	1296~3240	4-72-3.6A	Y100L-2-3kw	36	HGM88 HGM95
DMC48	36	1728~4320	4-68-4A	Y112M-2-4kw	48	HGM100
DMC64	48	2304~5760	4-68-4A	Y112M-2-4kw	64	HGM130 HGM120
DMC80	60	2880~7200	4-72-4A	Y132S1-2-5.5kw	80
DMC96	72	3456~8640	4-72-4.5A	Y132S2-2-7.5kw	96	HGM160 HGM175
DMC112	84	4032~10800	4-72-4.5A	Y132S2-2-7.5kw	112	HGM190
DMC128	96	4608~11520	4-72-4.5A	Y132S2-2-7.5kw	128		Selecting Based on Air Volume. More Dust, Lower Filter Wind Speed.
DMC128	96	8640~14400	4-72-5A	Y160M2-2-15kw	128
DMC150	112.5	5400~13500	4-72-5A	Y160M2-2-15kw	150
DMC150	112.5	10000~20000	4-68-6.3C	Y180M2-2-22kw	150
DMC180	135	6480~16200	4-72-8C	Y200L-2-30kw	180		Multipe Dust Collection & Location Timing. A Settling Room is a Must.
DMC220	165	7920~19800	7-72-8C	Y200L2-2-37kw	220

Model	Filtering area （m²）	Air volume （m³/h）
DMC24	18	864~2160
DMC36	27	1296~3240
DMC48	36	1728~4320
DMC64	48	2304~5760
DMC80	60	2880~7200
DMC96	72	3456~8640
DMC112	84	4032~10800
DMC128	96	4608~11520
DMC128	96	8640~14400
DMC150	112.5	5400~13500
DMC150	112.5	10000~20000
DMC180	135	6480~16200
DMC220	165	7920~19800
